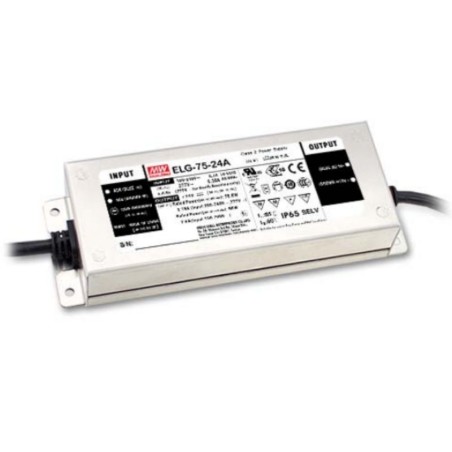

The MEAN WELL ELG-75-24 power supply is a high-performance solution designed to power LED strips, LED bulbs, and medium-power lighting systems in demanding environments. Its IP67-rated, watertight metal housing allows for use in outdoor, industrial, and harsh environmental conditions.
It supports an input range of 100 to 305V AC at 47-63Hz, delivering a 24V DC output with a maximum current of 3.15A, automatically adapting to load demand. Its rated power is 75.6W, with a typical efficiency of 88%, ensuring optimal energy efficiency and reliable operation.
The ELG-75-24 model features reinforced 3750V AC insulation between input and output, maintaining a low noise and ripple level of 200mVp-p. It features a power factor correction (PFC) of >0.95 at 230V AC at full load, and an no-load power consumption of less than 0.5W, optimizing efficiency at all times.
With dimensions of 180 x 63 x 35.5 mm, it fits easily into professional projects where space is limited. Its operating temperature range extends from -40°C to +85°C (Tc), making it suitable for the most extreme conditions.
The MEAN WELL ELG series is specifically designed for public, architectural, and outdoor lighting applications, featuring high efficiency, robustness, and reliability. This model is approved for hazardous areas (HL Class I Division 2 in the US).
It comes with a 5-year warranty and is CE, BIS, CCC, RCM, KCC, ENEC, EAC, UKCA, and UL certified.
";| Dimensions | 180 x 63 x 35.5 mm |
|---|---|
| Power (W) | 75 W |
| Voltage (V) | 24 V |
| Degree of tightness | IP65 |
| AC input | 100-305V AC |
| DC output | 24V 3.15A 75W |
